DSO-50x12 Series Digital Storage Oscilloscope



  Four in one   + DSO + Logic Analyzer +  FFT Spectrum Analyzer  + Electronics Counter

 Features

   ● Innovative cross triggering: logic analyzer channels can trigger the analog channels and vice versa.

   ● Long time pre-triggering up to 262143*256 points, about -67M points.

   ● Fast data capture and screen update rates.

   ● Hot key function that is convenient to use.

   ● Deep 512k/2M sample data acquisition buffers on each channel (A1, A2, A3, A4, D0 ~ D11).

   ● Precision 200MHz Frequency counter, up to 7 digital resolution  @ 512k memory for each analog

      channel.

   ● Advance Fast Fourier Transformations function to Bandwidth test.

   ● Support Pulse width and TV(NTSC525, PAL625) Triggering and count.

   ● Support  high speed (up to 50MHz SCL clock) I²C, SPI Triggering.

   ● Support  I²C, SPI, UART, more... serial bus timing encode.

   ● Convenient Timing state display for logic debug.

   ● X Y Plot.

   ● Measurements.

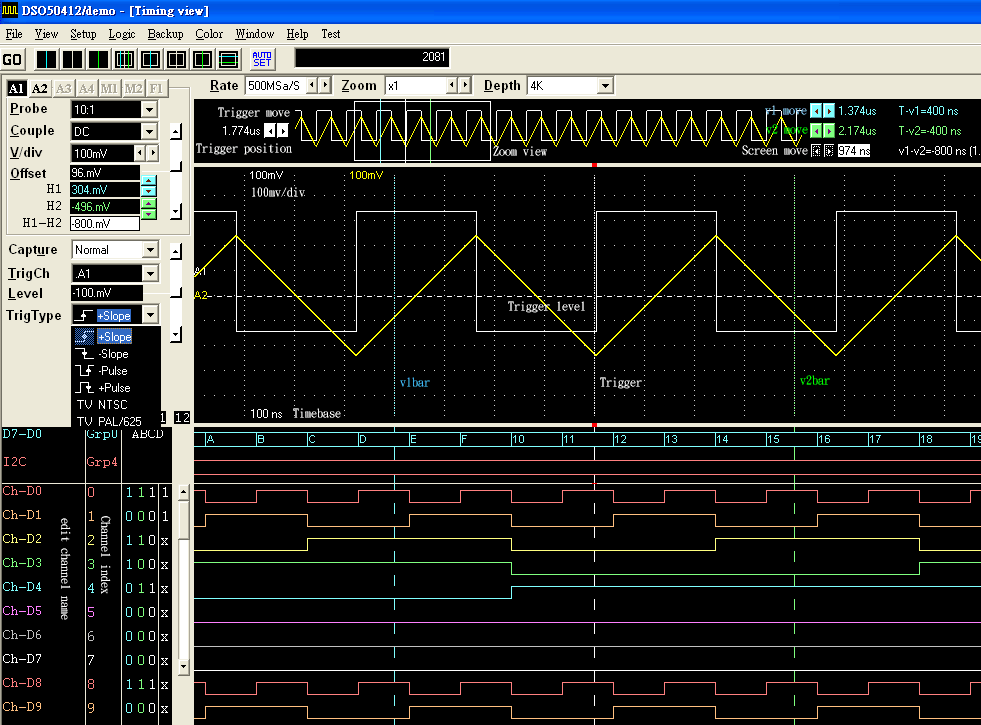

  Main Screen

 SPI Trigger

  I²C Trigger (Bytes + Ack)

 Trigger +Pulse Width

 Trigger -Pulse Width

 The FFT window allows control and display of FFT's.
    The following controls are available :
    Window Select the FFT window type :

    (Triangular, Hanning, Hamming, Blackman-Harris, Rectangular, Wetch and Parzen).



   X-Y Plot
